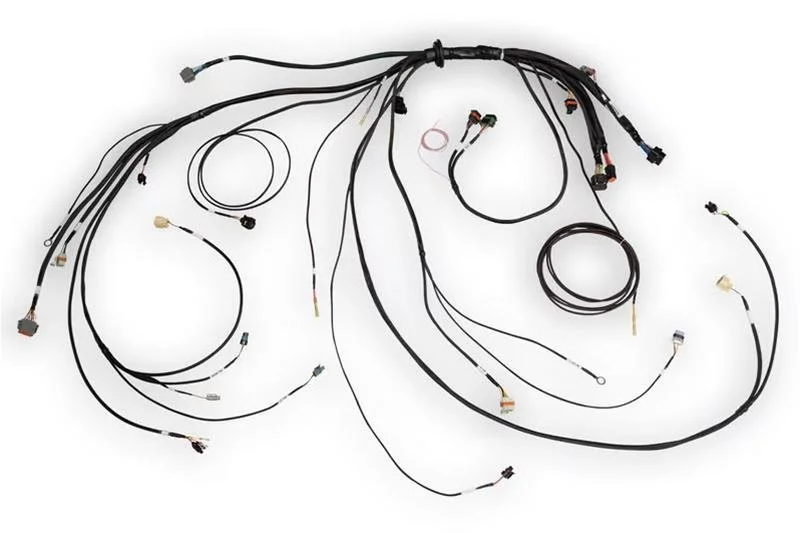

HT-186500 Nexus Rebel LS Terminated Harness for Nexus Rebel LS ECU

Main Terminated Harness for use with the Rebel LS ECU

Harness requires Injection, Factory Ignition, DBW, Pedal and Alternator Sub Harnesses - Sold separately.

• Injector breakouts

• HT-186501 - Nexus Rebel LS - EV1 Injector sub-harness

• HT-186502 - Nexus Rebel LS - EV6 injector sub-harness

• HT-186503 - Nexus Rebel LS - Multec 2 injector sub-harness

• Ignition breakout - Designed to plug into the factory ignition harness

• Alternator breakouts

• HT-186123 GM LS 2-Pin Bosch Alternator Harness

• HT-186124 GM LS 4-Pin Delco Alternator Harness

• HT-186125 GM LS 2-Pin Yazaki Alternator Harness

• Sensor adapters

• HT-186510 - Nexus Rebel LS - Gen IV Oil pressure sensor adapter harness

• HT-186511 - Nexus Rebel LS - MAP sensor adapter harness

• HT-186508 - Nexus Rebel LS - Gen III Knock sensor sub-harness

• Transmission sub-harness

• HT-187003 - Nexus Rebel LS - T56 transmission sub-harness
